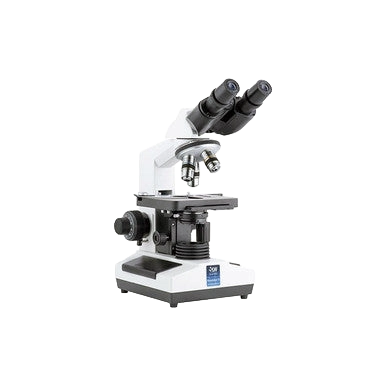

Revelation III Microscope

• Portable, USB-powered microscope
• Rechargeable battery allows for portable use
• LED light source produces daylight color with no heat
• Can be powered by USB power adapter, USB laptop port, or included rechargeable battery

The Revelation III is a best-seller into physician and veterinarian clinics, as well as universities and medical schools. The Revelation lll comes with LED illumination, for daylight color, low heat, low power consumption, and super-long bulb life (30,000). Equipped for performance, its features include titanium-finished DIN achromatic optics and a 30-year anti-fungal coating. The Revelation III is the choice for superior performance at a great value!

HEAD

Binocular (Seidentopf)

Inclined 30°, rotates 360°

Diopter adjustment

10X/18 wide field eyepieces (10X/20HP available)

Monocular, trinocular, dual binocular and 45° sliding heads available

Interpupillary distance range:

Binoc head: 48-75mm

Trinoc head: 55-75mm

OBJECTIVES

DIN Achromatic or DIN Plan

30 year anti-fungal coating

4X, 10X, 40X, 100XR (oil)

Parfocal, parcentric, color-coded

STAGE

Mechanical stage (140mm x 130mm)

Coaxial drive controls

Range of traverse is 78mm x 50mm

Stage locking lever

Slow-close hydraulic slide finger

ILLUMINATION

knob

Moveable Abbe condenser, NA 1.25, rack & pinion

Iris diaphragm

100-240V AC / 50-60Hz Auto-Switching Input

Light Options:

Variable halogen light source (12V/20W bulb) - Optional

Variable LED light source (3W bulb) - Standard
